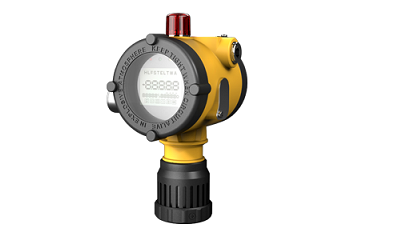

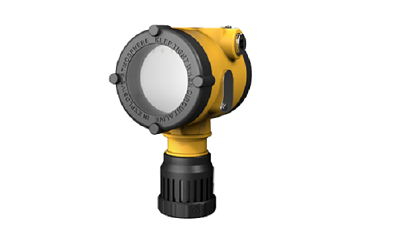

ES2000T/ESD200固定安裝，檢測工業現場可燃?xì)怏w及有毒氣體泄漏 采用分線制與報警控制器連接使用
ES2000T/ESD200主要功能參數
|
序號 |
功能 |
ES2000T |
ESD200 |
|
1 |
顯 示 |
無 |
現場LCD顯示 |
|
2 |
檢測氣體 |
可燃?xì)怏w/有毒氣體 |
可燃?xì)怏w/有毒氣體/VOC |
|
3 |
檢測原理 |
催化燃燒式/電化學式/半導體式 |
催化燃燒式/電化學式/光離子式 |
|
4 |
檢測范圍 |
0～100%LEL (可燃?xì)怏w) |
0～100%LEL (可燃?xì)怏w) |
|
5 |
準確度 |
±3%LEL (可燃?xì)怏w) ±3%FS (有毒氣體) |
±3%LEL (可燃?xì)怏w) ±3%FS (有毒氣體) |
|
6 |
重復性 |
≤2% |
≤2% |
|
7 |
響應時間 |
T90＜20S (催化燃燒式) |
T90＜20S (催化燃燒式) |
|
8 |
供電電源 |
24VDC |
24VDC |
|
9 |
功 耗 |
＜2.5W (可燃?xì)怏w) |
＜2.5W (可燃?xì)怏w) |
|
10 |
輸出信號 |
二線制4~20mA(僅適用于電化學傳感器) |
二線制4~20mA (僅適用于電化學傳感器, 可選配HART) |
|
11 |
繼電器容量 |
一組開關量輸出1A@24VDC |
一組開關量輸出1A@24VDC |
|
12 |
聲音強度 |
96dB@0.1米處 |
96dB@0.1米處 |
|
13 |
主體材料 |
ADC12鋁合金/316不銹鋼 |
ADC12鋁合金/316不銹鋼 |
|
14 |
連接螺紋 |
M20X1.5, 1/2NPT內螺紋 |
M20X1.5, 1/2NPT內螺紋 |
|
15 |
重 量 |
1.5kg (鋁合金, 帶聲光報警)
1.42kg (鋁合金, 不帶聲光報警) 3.4kg (不銹鋼, 不帶聲光報警) |
1.5kg (鋁合金, 帶聲光報警)
1.42kg (鋁合金, 不帶聲光報警) 3.4kg (不銹鋼, 不帶聲光報警) |
|
16 |
防爆認證 |
Exd ⅡC T6 Gb/Ex tD A21 IP66 T80℃ |
Exd ⅡC T6 Gb/Ex tD A21 IP66 T80℃ |
|
17 |
消防認證 |
CCCF |
CCCF |
|
18 |
計量認證 |
CMC |
CMC |
|
19 |
執行標準 |
GB 15322.1-2003, GB 3836.1-2010, |
GB 15322.1-2003, GB 3836.1-2010, |
|
20 |
防護等級 |
IP66 |
IP66 |
|
21 |
溫度范圍 |
-40℃～70℃ |
-40℃～70℃ |
|
22 |
濕度范圍 |
10～95%RH（無凝露） |
10～95%RH（無凝露） |
|
23 |
壓力范圍 |
86～106KPa |
86～106KPa |
ES2000T/ESD200可測可燃?xì)怏w
|
序號 |
名稱 |
分子式 |
ES2000T |
ESD200 |
|
K001 |
甲烷 |
CH4 |
● |
● |
|
K002 |
甲苯 |
C6H5CH3 |
● |
● |
|
K003 |
甲醇 |
CH3OH |
● |
● |
|
K004 |
甲酸甲酯 |
HCOOCH3 |
● |
● |
|
K005 |
甲酸乙酯 |
HCOOCH2CH3 |
● |
● |
|
K006 |
甲乙醚 |
CH3OCH2CH3 |
● |
● |
|
K007 |
乙烷 |
CH3CH3 |
● |
● |
|
K008 |
乙炔 |
CH≡CH |
● |
● |
|
K009 |
乙醇 |
CH3CH2OH |
● |
● |
|
K010 |
乙苯 |
CH3CH2C6H5 |
● |
● |
|
K011 |
乙烯 |
CH2=CH2 |
● |
● |
|
K012 |
乙酸甲酯 |
CH3COOCH3 |
● |
● |
|
K013 |
乙酸乙酯 |
CH3COOCH2CH3 |
● |
● |
|
K014 |
乙酸正丁酯 |
CH3COOCH2(CH2)2CH3 |
● |
● |
|
K015 |
丙烷 |
CH3CH2CH3 |
● |
● |
|
K016 |
丙醇 |
CH3CH2CH2OH |
● |
● |
|
K017 |
丙烯 |
CH2=CHCH3 |
● |
● |
|
K018 |
丙酮 |
(CH3)2CO |
● |
● |
|
K019 |
丁烷 |
C4H10 |
● |
● |
|
K020 |
丁酮 |
CH3CH2COCH3 |
● |
● |
|
K021 |
丁二烯 |
CH2=CHCH=CH2 |
● |
● |
|
K022 |
戊烷 |
C5H12 |
● |
● |
|
K023 |
己烷 |
CH3(CH2)4CH3 |
● |
● |
|
K024 |
庚烷 |
C7H16 |
● |
● |
|
K025 |
辛烷 |
CH3(CH2)3CH3 |
● |
● |
|
K026 |
壬烷 |
CH3(CH2)7CH3 |
● |
● |
|
K027 |
一氧化碳 |
CO |
● |
● |
|
K028 |
氨氣 |
NH3 |
● |
● |
|
K029 |
氫氣 |
H2 |
● |
● |
|
K030 |
苯 |
C6H6 |
● |
● |
|
K031 |
異丁烷 |
(CH3)2CHCH3 |
● |
● |
|
K032 |
異丙醇 |
(CH3)2CHOH |
● |
● |
|
K033 |
1-丁醇 |
CH3(CH2)2CH2OH |
● |
● |
|
K034 |
環己烷 |
CH2(CH2)4CH2 |
● |
● |
|
K035 |
環戊烷 |
CH2(CH2)3CH2 |
● |
● |
|
K036 |
環氧丙烷 |
CH3CHCH2O |
● |
● |
|
K037 |
環氧乙烷 |
CH2CH2O |
● |
● |
|
K038 |
二乙醚 |
(CH3CH5)2O |
● |
● |
|
K039 |
二甲醚 |
(CH3)2O |
● |
● |
|
K040 |
二甲苯 |
C6H4(CH3)2 |
● |
● |
|
K041 |
汽油 |
C6H4(CH3)2 |
● |
● |
|
K042 |
噴氣燃料、煤油 |
C6H4(CH3)2 |
● |
● |
注1：測量乙炔，請使用抗中毒型傳感器
注2：●表示該產品能檢測對應氣體
ES2000T/ESD200可測有毒氣體
|
序號 |
名稱 |
分子式 |
測量范圍 |
ES2000T |
ESD200 |
|
D001 |
氧氣 |
O2 |
0-25%v/v |
● |
● |
|
D002 |
一氧化碳 |
CO |
0-100/200/500/1000 |
● |
● |
|
D003 |
硫化氫 |
H2S |
0-20/50/100 |
● |
● |
|
D004 |
氫氣 |
H2 |
0-1000 |
● |
● |
|
D005 |
氨氣 |
NH3 |
0-100/500/1000 |
● |
● |
|
D006 |
氯氣 |
CL2 |
0-10/20 |
● |
● |
|
D007 |
一氧化氮 |
NO |
0-100/500 |
● |
● |
|
D008 |
二氧化氮 |
NO2 |
0-20/50 |
● |
● |
|
D009 |
二氧化硫 |
SO2 |
0-20/100 |
● |
● |
|
D010 |
氯乙烯 |
C2H3CL |
0-20/100 |
● |
● |
|
D011 |
丙烯腈 |
C3H3N |
0-100/200 |
● |
● |
|
D012 |
甲醇 |
CH3OH |
0-100/200/500 |
● |
● |
|
D013 |
甲醛 |
CH2O |
0-50/100/200/500 |
● |
● |
|
D014 |
環氧乙烷 |
C2H4O |
0-20/100/200 |
● |
● |
|
D015 |
氯化氫 |
HCL |
0-30/50 |
● |
● |
|
D016 |
氟化氫 |
HF |
0-10 |
● |
● |
|
D017 |
氰化氫 |
HCN |
0-30 |
● |
● |
|
D038 |
四氫噻吩 |
C4H8S |
0-25 |
● |
● |
注1：●表示該產品能檢測對應氣體
ES2000T/ESD200可測VOC氣體
|
序號 |
名稱 |
分子式 |
測量范圍 |
ES2000T |
ESD200 |
|
V001 |
苯 |
C6H6 |
0-20/50/100 |
X |
● |
|
V002 |
甲苯 |
C7H8 |
0-20/50/100 |
X |
● |
|
V003 |
乙苯 |
C8H10 |
0-50/100 |
X |
● |
|
V004 |
環己酮 |
C6H10O |
0-100/200 |
X |
● |
|
V005 |
丙酮 |
C3H6O |
0-100/200 |
X |
● |
|
V006 |
苯酚 |
C6H6O |
0-100/200 |
X |
● |
|
V007 |
乙酸乙酯 |
C4H8O2 |
0-500/1000 |
X |
● |
|
V008 |
苯乙烯 |
C8H8 |
0-50/100 |
X |
● |
|
V009 |
甲胺 |
CH5N |
0-100/200/400 |
X |
● |
|
V010 |
苯胺 |
C6H7N |
0-50/100 |
X |
● |
|
V011 |
二甲苯 |
C8H10 |
0-20/50/100 |
X |
● |
